Dryer Duct

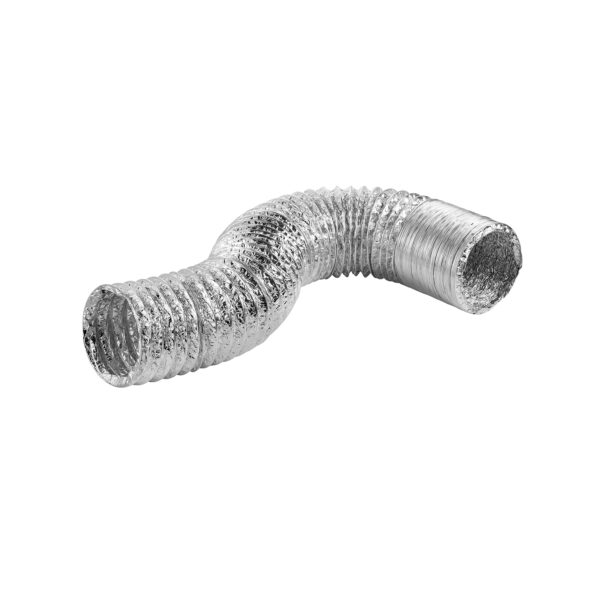

The Lambro foil flex 4-inch x 20-foot UL 2158A transition duct is ideal for venting an electric or gas clothes dryer to the wall pipe.

The transition duct is for new and replacement clothes dryer installations. The foil flex duct is highly flexible, allowing tight bends for easy installation. When installing the duct, you can cut it to length to allow for stretching for maximum airflow.

The duct manufacturing material is aluminum and polyester over a galvanized wire helix frame. The certified UL 2158A duct contains a UL marking on each length.

Please be sure to check local building codes before installation.

WARNING: Check your clothes dryer manufacturer’s manual; installation of this duct may void the warranty.

Product features and benefits:

Retail pack
Do not exhaust clothes dryer into the chimney, a wall, a ceiling, or a concealed space of a building
Installation from clothes dryer exhaust outlet to the wall pipe to the outside
Installations lengths of 8′ or less
Cut duct to length as needed using wire cutters and a knife or scissor
UL 2158A certified marked and listed duct
For use with electric or gas clothes dryers
Flame-resistant
Maximum operating temperature of 257°F
No elbows needed – tight bend radius
Installation clamps (not included)

Product Contains:

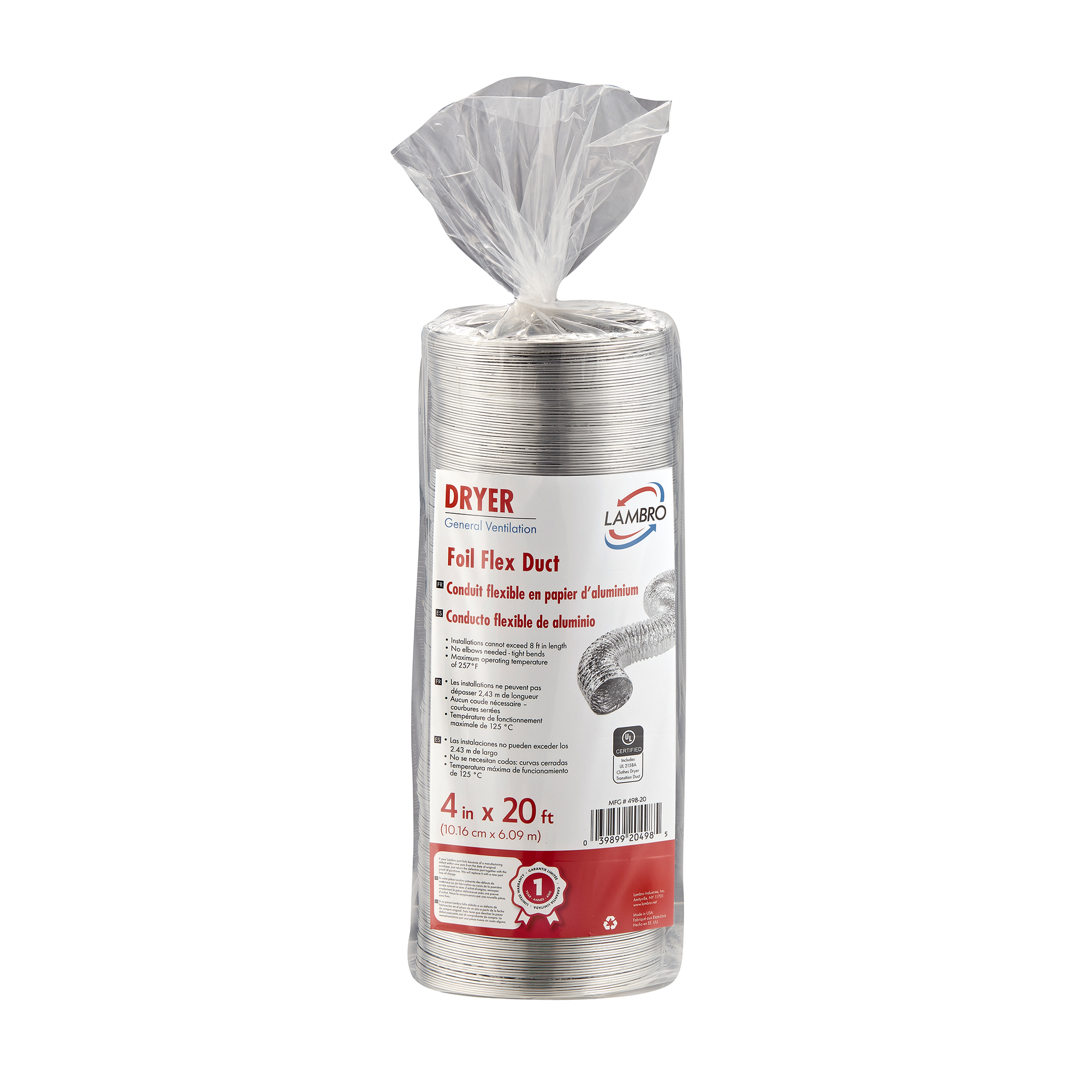

(1) 4-inch x 20-foot UL 2158A clothes dryer transition duct (foil flex)

Are you interested in seeing other lengths offered?
3-foot
5-foot
8-foot
25-foot
50-foot

Do you need clamps to install the duct?
Recommended Clamps

Guideline for Transition Ducts
In December 2006, Underwriters Laboratories introduced UL 2158A, “Clothes Dryer Transition Duct”, an approved standard for flexible, high-temperature transition ducts, rated to 430 °F., for both electric and gas dryers (this standard is also part of IRC M1502.4.3 and IMC 504.8.3)

The transition duct is a flexible duct that connects the back of the dryer to the exhaust vent in the exterior wall. The requirements for transition ducts are as follows:

Must be a single length connecting sections disallowed
Can’t be concealed within construction, such as passing through floors, walls, hidden spaces, etc., or be longer than 8 feet
Only flexible ductwork listed, labeled, and in compliance with UL 2158A can be used

Types of Transition Ducts
